Stainless Steel Square Extruded Pipe

What is an Stainless Steel Square Extruded Pipe?

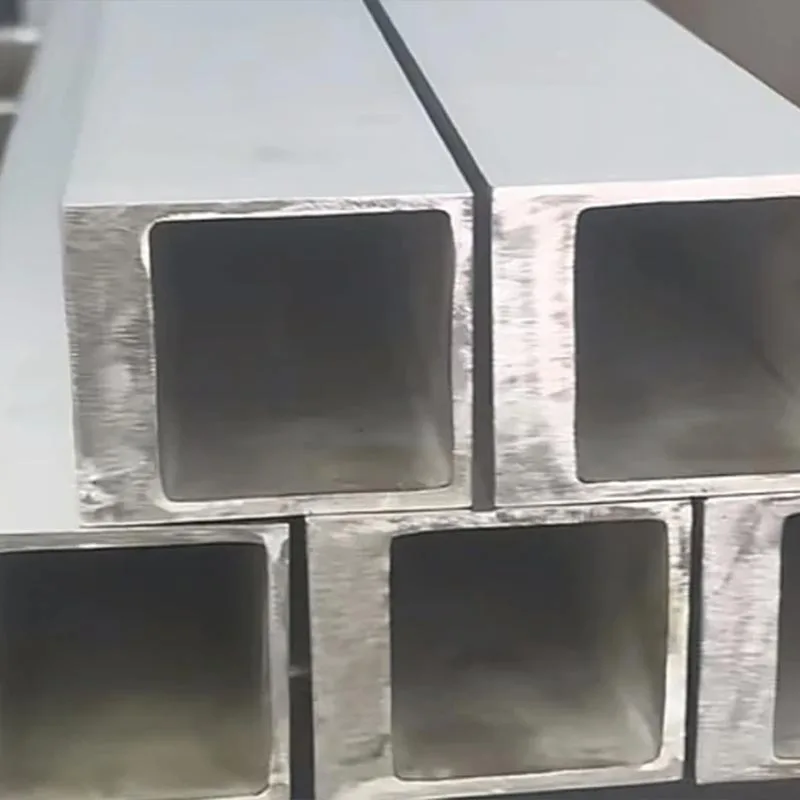

Stainless steel square extruded pipe is a seamless hollow profile manufactured through a hot extrusion process, where a solid stainless steel billet is heated and pressed through a specially designed square-shaped die to create the final tubular structure in one continuous forming process.

Unlike conventional welded square tubes made by bending flat strips and joining the corners with welds, stainless steel square extruded pipes are produced as an integrated structure with no longitudinal seam, no heat-affected zone, and no welded corner joints. This manufacturing method enables more reliable performance in applications requiring high pressure resistance, uniform heat transfer, and customized wall thickness designs.

Key Features

1. Seamless Structure Without Weld Weak Points

The hot extrusion process creates a fully seamless square pipe from a single billet. Without weld lines or corner weld defects, Ji lai da stainless steel square extruded pipes provide improved mechanical strength, pressure resistance, and long-term reliability compared with traditional welded square tubes.

This seamless structure makes them suitable for systems where failure risks from weld cracks, corrosion around weld areas, or uneven material properties cannot be accepted.

2. Customized Unequal Wall Thickness Design

One of the key advantages of hot extrusion technology is the ability to produce complex cross-sections that cannot be achieved through welding.

Ji lai da's unequal-wall seamless square pipe features:
● Left wall: 3.3 mm
● Right wall: 3.3 mm
● Top wall: 3.3 mm
● Bottom wall: 13 mm

This customized geometry allows engineers to reinforce specific loading areas while reducing unnecessary material usage.

For AI data center liquid cooling systems, the 13 mm thick bottom wall functions as a high-efficiency thermal interface, providing a larger heat conduction path and maintaining structural flatness under continuous clamping pressure. The thinner walls reduce overall weight and minimize coolant volume, improving system efficiency.

3. Superior Thermal Uniformity

The seamless one-piece structure provides consistent material distribution and stable thermal conductivity across the entire profile.

Compared with welded square tubes, stainless steel square extruded pipes avoid uneven heat transfer caused by weld areas and different metallurgical structures. This makes them ideal for applications involving:

● Liquid cooling systems
● Heat transfer equipment
● High-temperature processing systems
● Thermal management components

4. Wide Stainless Steel Grade Selection

Ji lai da supplies stainless steel square extruded pipes in various austenitic stainless steel grades, including:

5. Factory Direct Supply With Custom Manufacturing

As a China manufacturer with its own hot extrusion production capability, Jiangsu Ji Lai Da Nickel-Based Alloy Co., Ltd. provides:

● Custom square pipe extrusion
● Special cross-section development
● Unequal wall thickness solutions
● Material test certificates (MTC)
● Factory-direct pricing
● OEM manufacturing support

Customers can provide drawings or section requirements, and Ji lai da can develop customized extrusion solutions based on mechanical, thermal, and application requirements.

Product Parameter

Applications

With the rapid growth of AI computing infrastructure, direct-to-chip liquid cooling systems require components capable of handling high thermal loads while maintaining mechanical stability.

Ji lai da unequal-wall stainless steel square extruded pipes are designed for liquid cooling manifolds and thermal distribution systems. The reinforced wall section provides improved heat conduction and structural support, helping data centers achieve reliable cooling performance for high-density computing environments.

Industrial Structural Components

The customized wall thickness design allows stainless steel square extruded pipes to optimize strength where loads are concentrated.

Applications include:
● Heavy-duty structural frames
● Load-bearing columns
● Industrial equipment supports
● Precision machinery structures

Chemical Processing Equipment

Stainless steel square extruded pipes made from corrosion-resistant grades such as 316 and 316L are suitable for chemical environments requiring long service life.

Typical applications include:
● Chemical processing equipment
● Corrosive fluid systems
● Reactor components
● Tank internal structures

High-Temperature Equipment

310 and 310S stainless steel square extruded pipes maintain excellent oxidation resistance and mechanical strength under elevated temperatures.

They are commonly used in:
● Heat treatment equipment
● Industrial furnaces
● High-temperature structural assemblies

Why Choose Ji Lai Da Stainless Steel Square Extruded Pipe?

Traditional welded square tubes are suitable for general construction and fabrication, but advanced industrial applications require more than a welded profile.

Jiangsu Ji Lai Da Nickel-Based Alloy Co., Ltd. combines hot extrusion technology, stainless steel expertise, and custom manufacturing capability to deliver seamless square pipes with complex geometries, superior strength, and optimized thermal performance.

Whether you need standard equal-wall square pipes or customized unequal-wall profiles, Ji lai da provides reliable China-made stainless steel extrusion solutions for global industrial customers. Send your cross-section drawing and application requirements for a customized quotation.

FAQ

Q1: Why extruded instead of welded square tube?

A: Welded tube has a seam at every corner — a stress concentrator, a corrosion initiation point, and a thermal discontinuity. Extruded stainless steel square pipe is seamless: uniform grain structure, no weak corners, and the ability to produce unequal wall thicknesses that welding simply cannot achieve.

Q2: Why is the bottom wall 13 mm and the others 3.3 mm?

A: For AI data center liquid cooling, the bottom wall is the thermal contact surface — it needs thickness for flatness under clamping, for thermal mass, and for thread tapping if you're bolting cold plates directly. The other three walls can be thin to save weight and maximize internal coolant flow. This geometry only works as a seamless extrusion.

Q3: Can you do other unequal-wall profiles?

A: Yes. The 3.3/13 mm profile is our standard, but we can design and produce custom die profiles for your specific application. Any combination of wall thicknesses, any grade — just send us the drawing and Jiangsu Ji Lai Da Nickel-Based Alloy Co., Ltd. will quote.

Q4: What grades are available?

A: 304, 316, 310, 310S, 316L as standard. Other austenitic, duplex, or nickel-based grades available on request. For data center cooling, 304 and 316 are the most commonly specified.

Q5: How is your pricing?

A: We're a factory-direct China manufacturer — no trading margins. Custom extrusion dies are a one-time cost we keep reasonable, and our high material yield keeps per-meter pricing competitive even on unequal-wall profiles. Contact Ji lai da for a quotation on your specific requirement.
