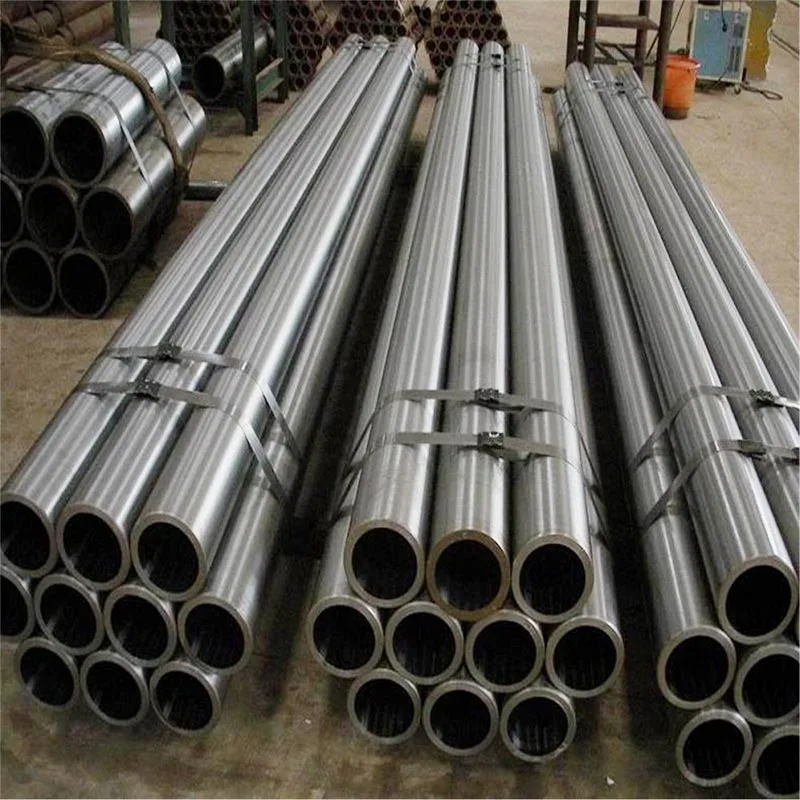

304 Stainless Steel Seamless Pipe

JILAIDA factory manufactures 304 Stainless Steel Seamless Pipe through a hot-rolled seamless process, with outer diameters from 6mm to 89mm, wall thicknesses from 3mm to 30mm, and standard lengths from 3000mm to 10000mm. Cut-to-length requirements, beveled ends, and specified surface treatments can be arranged according to project requirements.

Product Parameter

Key Features

1. General Corrosion Resistance

304 stainless steel contains approximately 18% chromium and 8% nickel, forming a passive chromium oxide layer that provides resistance to atmospheric corrosion and many common service environments.

2. Good Fabrication and Welding Properties

304 stainless steel can be processed using common fabrication methods, including bending and welding. Its carbon content is limited to 0.08% maximum, making it suitable for a wide range of general fabrication requirements.

3. Seamless Pipe Construction

The hot-rolled seamless process produces a tubular product without a longitudinal welded seam. This construction is suitable for applications where seamless stainless steel pipe is specified.

4. Broad Temperature Capability

304 stainless steel maintains useful mechanical properties across a broad temperature range and retains good toughness at low temperatures. For elevated-temperature service, the actual temperature and operating environment should be considered during material selection.

5. Flexible Processing Options

JILAIDA supports cut-to-length requirements, beveled ends, and specified surface treatments, allowing the pipe to be prepared for different fabrication and installation conditions.

Product Application

Food and Beverage

304 seamless pipe can be used in selected food and beverage processing lines and equipment, including dairy, brewing, and bottling applications.

Pharmaceutical Equipment

The material is suitable for selected pharmaceutical and clean-process piping applications where stainless steel construction and corrosion resistance are required.

Water Treatment

304 seamless pipe can be used in water treatment and related equipment where resistance to general water and atmospheric exposure is required.

Chemical Processing

The pipe is suitable for fluid transfer involving many mild chemical media, subject to compatibility with the actual process environment.

HVAC and Refrigeration

304 stainless steel seamless pipe can be used in selected heat exchanger, condenser, and refrigeration-related tubular applications.

Architectural Applications

The material can be used for handrails, balustrades, structural elements, and other architectural components requiring stainless steel construction.

Automotive Applications

Selected automotive tubular and fluid-handling components can use 304 stainless steel where the material requirements are suitable.

Marine and Coastal Applications

304 can be used in selected marine hardware and coastal architectural applications. For severe chloride exposure, direct seawater immersion, or aggressive salt conditions, 316 or 316L may be more suitable.

Material Comparison

304 is widely selected for applications requiring a balance of corrosion resistance, fabrication performance, and general industrial usability. The choice between 304, 304L, and 316/316L depends on the service environment and fabrication requirements.

Final material selection should consider the service medium, temperature, fabrication conditions, and operating environment.

Manufacturing Process

JILAIDA manufactures 304 Stainless Steel Seamless Pipe through a hot-rolled seamless process, followed by finishing and processing according to the required specification.

Hot-Rolled Seamless Production

The seamless manufacturing process forms the pipe without a longitudinal welded seam, creating a continuous tubular structure.

Straightening

Straightening is applied to improve the dimensional condition of the pipe after production.

Surface Treatment

Pickling and other specified surface treatments can be applied according to product and order requirements.

Cutting and End Preparation

The pipe can be cut to specified lengths and supplied with beveled ends when required for fabrication or installation.

Why Choose JILAIDA

304 Seamless Pipe Supply

JILAIDA supplies 304 Stainless Steel Seamless Pipe in outer diameters from 6mm to 89mm, wall thicknesses from 3mm to 30mm, and standard lengths from 3000mm to 10000mm.

Hot-Rolled Seamless Process

The hot-rolled seamless process provides a continuous tubular structure for applications where seamless stainless steel pipe is required.

Processing Support

Cut-to-length, beveled ends, and specified surface treatments can be coordinated according to order requirements.

International Order Support

JILAIDA supports international orders and can coordinate shipping terms and commercial documentation according to customer and destination requirements.

FAQ

Q1: What is 304 stainless steel seamless pipe used for?

A: It is used in food and beverage processing, pharmaceutical equipment, water treatment, chemical processing, HVAC and refrigeration systems, architectural applications, and selected automotive and marine applications.

Q2: What sizes are available?

A: The available range covers outer diameters from 6mm to 89mm, wall thicknesses from 3mm to 30mm, and lengths from 3000mm to 10000mm. Specific sizes should be confirmed according to project requirements.

Q3: Is the pipe manufactured without a welded seam?

A: Yes. The pipe is manufactured through a hot-rolled seamless process and does not have a longitudinal welded seam.

Q4: Can the pipe be cut to a specified length?

A: Yes. Cut-to-length requirements are supported. Please provide the required finished length and quantity when requesting a quotation.

Q5: Can beveled ends be supplied?

A: Yes. Beveled ends can be provided according to fabrication or installation requirements. The required end preparation should be confirmed before production.

Q6: What is the difference between 304 and 304L?

A: 304L has a lower carbon content than standard 304, making it suitable for welded fabrications where reduced sensitization is an important consideration.

Q7: Is 304 suitable for coastal environments?

A: 304 can be used in many atmospheric and moderate coastal environments. However, severe chloride exposure, direct seawater contact, or heavy salt conditions may require 316 or 316L for improved resistance to localized corrosion.
