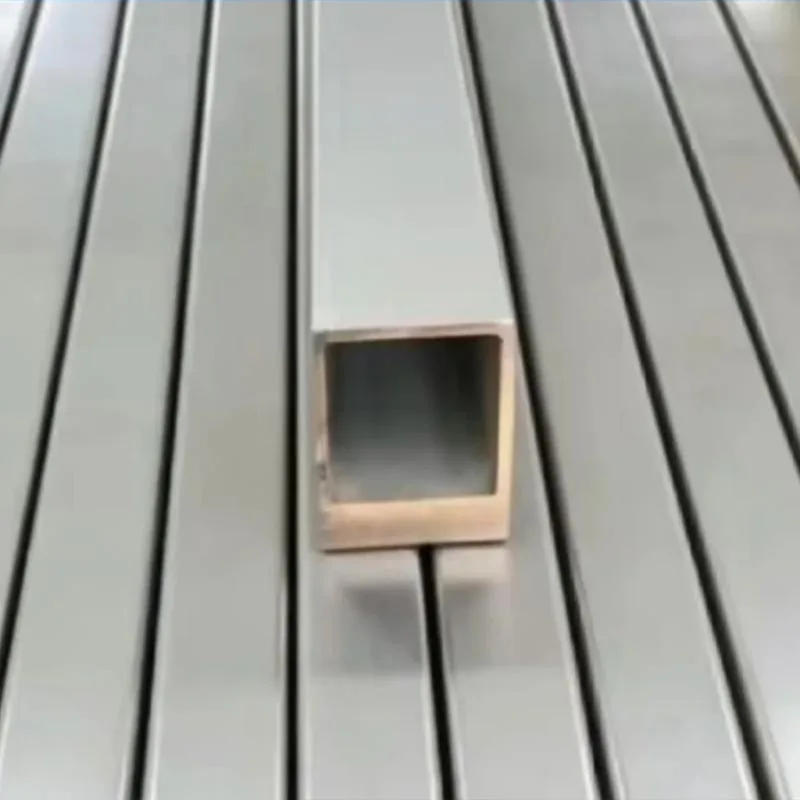

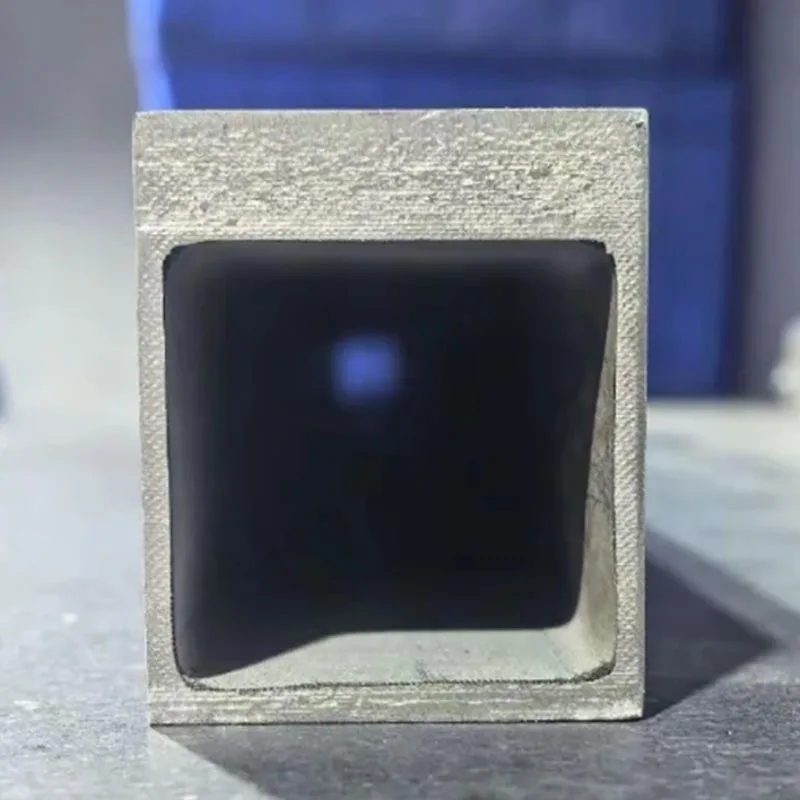

N06625 Seamless Square Pipe

Unlike conventional welded square tubes, seamless extrusion eliminates weld-related weak points and provides consistent mechanical performance throughout the entire profile. However, producing a seamless square pipe from Inconel 625 is significantly more challenging than manufacturing standard round tubing.

The alloy has:
● High deformation resistance
● A narrow hot-working temperature range
● Strict extrusion temperature requirements
● High tooling demands during square forming

Maintaining dimensional accuracy while preventing cracking during extrusion requires specialized equipment and extensive nickel alloy processing experience.

Jiangsu Ji Lai Da Nickel-Based Alloy Co., Ltd. is one of the China manufacturers capable of producing N06625 seamless square pipe through hot extrusion from a single billet, providing both equal-wall and customized unequal-wall profiles according to customer requirements.

Why Choose Inconel 625 Instead of Stainless Steel?

N06625 seamless square pipe is selected for applications where stainless steel grades such as 304 and 316 cannot provide sufficient service life.

The alloy achieves its corrosion resistance through a nickel-chromium-molybdenum-niobium composition:
● Molybdenum (8–10%) improves resistance to pitting and crevice corrosion
● Niobium stabilizes the alloy structure and reduces sensitization risk
● Chromium provides oxidation resistance and protection in harsh environments

Compared with stainless steel, Inconel 625 offers significantly better resistance against:
● Chloride corrosion
● Stress corrosion cracking
● Wet-dry salt cycling
● Acid-containing environments

The alloy maintains reliable performance under temperatures up to approximately 650°C, making it suitable for applications combining corrosion, pressure, and elevated temperature.

Manufacturing Advantage

Producing a square hollow section from Inconel 625 requires more advanced processing than conventional welded tube manufacturing.

Jiangsu Ji Lai Da manufactures N06625 seamless square pipe using hot extrusion from a solid nickel alloy billet.

This process provides:
● No longitudinal weld seam
● No welded corner defects
● Uniform material structure
● Improved mechanical reliability
● Better corrosion resistance compared with fabricated square tubing

The seamless extrusion route is especially valuable for structural components and pressure-related applications where welded corners may become potential failure points.

Applications

Offshore and Marine Engineering

In marine environments, chloride exposure and continuous wet-dry cycling can rapidly damage conventional materials.

N06625 seamless square pipe is suitable for:
● Offshore riser supports
● Marine structural frames
● Seawater equipment housings
● Splash-zone components

Its resistance to chloride-induced corrosion makes it a reliable alternative to stainless steel in aggressive seawater environments.

Chemical Processing Equipment

Chemical plants require materials capable of handling both corrosive media and temperature fluctuations.

Typical applications include:
● Reactor internal frames
● Acid-line headers
● Chemical equipment supports
● Corrosive fluid handling structures

The alloy performs well in environments containing hydrochloric acid, sulfuric acid, and mixed chemical media.

Aerospace and Defense Systems

The combination of strength, corrosion resistance, and elevated-temperature capability makes N06625 suitable for:
● Aerospace duct structural housings
● Engine-related support structures
● Naval equipment frames
● Defense chemical processing systems

Flue Gas Desulfurization Systems

Wet-dry cycling and chloride contamination create severe corrosion challenges in pollution-control equipment.

N06625 seamless square pipe provides long-term resistance in:
● FGD absorber systems
● Gas treatment equipment
● Corrosive exhaust environments

Limited Supply from Specialized Nickel Alloy Extrusion Manufacturers

N06625 seamless square pipe remains a niche product because only a limited number of manufacturers have the capability to successfully extrude nickel alloy square profiles.

Without seamless extrusion capability, buyers often have to choose between:
● Over-specifying more expensive alloys such as Hastelloy C276
● Using welded 625 square tubing with reduced corner integrity
● Accepting longer international sourcing lead times

Jiangsu Ji Lai Da provides a direct manufacturing solution with:
● In-house nickel alloy extrusion capability
● Custom square and rectangular profiles
● Equal-wall and unequal-wall options
● Factory-direct pricing
● Shorter supply chain compared with overseas mills

Square Profile Specs

Buyer Questions

Q1: Why is N06625 seamless square pipe so hard to find?

A: Two reasons. 625 has high deformation resistance — it fights the die during extrusion, and without tight process control the pipe cracks. Second, square dies for nickel alloys are expensive and wear quickly, so most mills stick to round profiles. Ji lai da invested in both the tooling and the process know-how for products like this.

Q2: Can you do unequal-wall square profiles in 625?

A: Yes. We can produce N06625 seamless square pipe with different wall thicknesses on different faces — thick bottom for mounting, thin sides for weight reduction. Send us your cross-section drawing.

Q3: How does your pricing compare?

A: Significantly better than Western-mill quotes for the same product. We're a China manufacturer with our own extrusion line — no outsourcing, no trading margin. Tooling cost is amortized over order volume, and high material yield keeps per-meter pricing down. Try us — you'll likely save 20–40%.

Q4: What surface finishes are available?

A: As-extruded, pickled, or polished. For chemical and marine service, pickled is standard. For visible structural or architectural applications, polished is available at slight additional cost.

Q5: Are you a manufacturer or trading company?

A: A China manufacturer. Jiangsu Ji Lai Da Nickel-Based Alloy Co., Ltd. operates our own hot extrusion line. ISO 9001 certified with four additional industry certifications. Factory visits and third-party inspection by SGS, BV, or TÜV are welcome.
