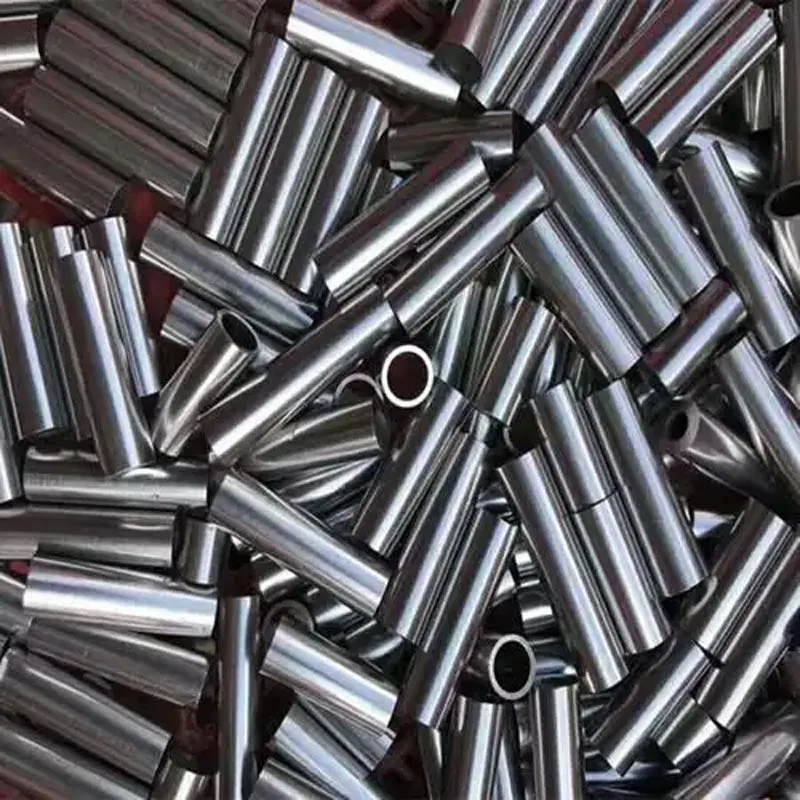

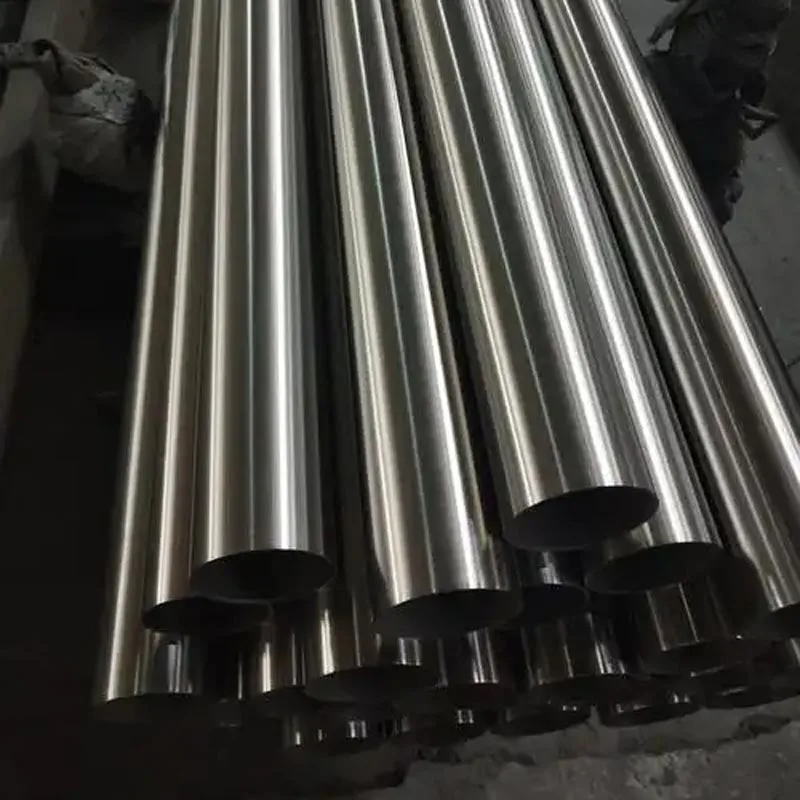

Inconel 625 Pipe For Oil And Gas

Manufactured by hot extrusion from vacuum-induction-melted and vacuum-arc-remelted (VIM + VAR) billet stock, every tube produced by Jiangsu Ji Lai Da Nickel-Based Alloy Co., Ltd. features a fully seamless structure without longitudinal weld seams or heat-affected zones that may become corrosion initiation points under high pressure and cyclic loading.

Unlike precipitation-hardened nickel alloys such as GH4169, Inconel 625 obtains its strength through solid-solution strengthening from molybdenum and niobium in a nickel-chromium matrix. This allows the alloy to maintain excellent corrosion resistance, weldability, and mechanical stability without additional aging treatment.

Key performance advantages include:
● Yield strength above 414 MPa
● Service temperature range from cryogenic conditions up to 980°C
● Excellent resistance to chloride corrosion
● Outstanding weldability in the as-extruded condition
● Reliable performance in sour oil and gas environments

Why Choose Inconel 625 Pipe for Oil and Gas?

Oil and gas production environments often contain aggressive combinations of:
● Hydrogen sulfide (H₂S)
● Carbon dioxide (CO₂)
● High chloride brine
● High-pressure formation fluids

These conditions can rapidly damage conventional carbon steel, stainless steel, and duplex alloys.

Inconel 625 provides exceptional corrosion resistance through its balanced chemical composition:
● Approximately 22% chromium for oxidation and oxidizing acid resistance
● Approximately 9% molybdenum for pitting and crevice corrosion resistance
● Approximately 4% niobium for solid-solution strengthening and corrosion stability

The alloy maintains reliable performance even in chloride concentrations exceeding 50,000 ppm, making it suitable for demanding offshore and subsea applications.

Typical Applications in Oil and Gas Industry

Inconel 625 pipe is widely specified for equipment requiring long-term corrosion resistance and mechanical reliability.

Common applications include:

Subsea Systems
● Subsea flowlines
● Deepwater risers
● Offshore production systems
● Seawater-handling manifolds

Downhole Equipment
● Injection tubing
● Completion components
● High-pressure production systems
● Sour-gas wells

Processing Facilities
● Sour-gas gathering systems
● Chemical processing pipelines
● Corrosive fluid transportation systems

For projects requiring NACE compliance, UNS N06625 is commonly selected because of its proven performance in severe sour-service conditions.

NACE MR0175 Compliance and Sour-Service Reliability

Inconel 625 (UNS N06625) is listed in NACE MR0175 / ISO 15156-3 as an acceptable material for sour-service applications.

Compared with some duplex and super-duplex grades, Inconel 625 provides additional fabrication advantages because welded areas generally maintain corrosion resistance without requiring post-weld solution annealing.

This reduces:
● Additional heat-treatment requirements
● Fabrication delays
● Distortion risks
● Production costs

When requesting a quotation, customers should provide:
● H₂S partial pressure
● Maximum chloride concentration
● Operating temperature
● Design pressure
● Applicable material standard

This allows Ji Lai Da to confirm the appropriate material condition and ensure compliance with project requirements before production.

Excellent Weldability Without Post-Weld Heat Treatment

The solid-solution strengthening mechanism of Inconel 625 provides advantages beyond corrosion resistance.

Because the alloy does not rely on gamma-prime or gamma-double-prime precipitation strengthening, it maintains stable ductility and toughness during long-term service.

Inconel 625 pipe can be welded using common processes including:
● GTAW (TIG welding)
● GMAW (MIG welding)

with matching ERNiCrMo-3 filler metal.
The welded area maintains corrosion resistance similar to the base material, eliminating the additional solution annealing process often required for precipitation-hardened alloys.
This simplifies fabrication and reduces manufacturing risks for complex oil and gas assemblies.

Seamless Manufacturing Process and Quality Control

Jiangsu Ji Lai Da Nickel-Based Alloy Co., Ltd. manufactures Inconel 625 pipe through a fully controlled production process: 1.VIM + VAR billet preparation 2.Hot extrusion forming 3.Solution annealing 4.Straightening 5.Hydrostatic or ultrasonic testing 6.Final dimensional inspection

The hot extrusion process creates uniform grain flow around the complete tube circumference, improving structural consistency and eliminating weld-related weak points.

Every shipment includes complete documentation:
● EN 10204 3.1 Mill Test Certificate
● Heat traceability records
● Chemical composition report
● Mechanical testing results
● Inspection documentation

Key Dimensions & Compliance

FAQ

Q: Does Inconel 625 pipe for oil and gas require post-weld heat treatment?

A: No. Because the alloy is solid-solution strengthened, welding does not destroy a precipitation-hardened microstructure. The weld deposit and heat-affected zone retain the same corrosion resistance as the base metal in the as-welded condition, which eliminates an entire processing step and reduces fabrication cost.

Q: How does Inconel 625 compare with Incoloy 825 for sour service?

A: Inconel 625 offers significantly higher pitting resistance (PREn ≥ 40 vs ≈ 31 for 825) and is listed in NACE MR0175 for all severity levels without restrictions. Incoloy 825 may suffice in moderate-sour conditions, but deep wells with high H₂S partial pressures and elevated chloride concentrations typically require the 625 grade.

Q: Can the manufacturer supply Inconel 625 pipe for oil and gas to ASTM B444?

A: Yes. Jiangsu Ji Lai Da Nickel-Based Alloy Co., Ltd. produces to both ASTM B444 (seamless pipe and tube) and ASTM B829 (seamless pipe general requirements). Indicate the applicable specification on your RFQ so the mill can include the required tests and documentation.

Q: What non-destructive testing is performed before shipment?

A: Ultrasonic examination to ASTM E213 and hydrostatic testing per the order specification are standard. Eddy-current inspection can be added on request. Every pipe ships with a test report documenting the method, acceptance criteria, and results.
